Product features, technical parameters and basic configuration of corn starch ton bag packaging mach

Ton bag packaging machines are large-scale weighing and packaging equipment used for packaging materials in ton bags. They integrate multiple functions such as electronic weighing, automatic bag removal, and dust removal. The following will provide you with a detailed introduction from multiple aspects:

I. Product Features of Corn Starch Bulk Bag Packaging Machine

Tailor-made: Specifically designed based on the characteristics of powder materials and the different requirements of users, the equipment features advanced technology, durability and few wearing parts.

High degree of automation: Equipped with a programmable electronic control system, the control process is highly reliable. The packaging adopts stepless speed regulation and can automatically remove bags. The operation is relatively simple.

High packaging accuracy: The weighing system is an electronic scale platform type metering, adopting full-panel digital adjustment and parameter setting. It features cumulative weight display, automatic tare, automatic zero calibration, and automatic drop correction functions. It has high sensitivity and strong anti-interference ability.

Environmental protection design: Advanced dust-proof and dust-removal design reduces dust pollution in the working environment, which is beneficial to protecting workers' health and the environment.

Convenient for management: The instrument is equipped with a communication interface, facilitating online connection and networking. It enables real-time monitoring and networked management of the packaging machine.

Superior structure: The unique hydraulic lifting system makes it easy to handle ton-bag packaging and convenient for subsequent processing procedures. It also features a pneumatic hook clamping system, inflation and deflation mechanism, feeding metering control mechanism, hydraulic lifting mechanism, conveying rollers, and electrical control system, etc.

II. Technical Parameters of Corn Starch Bulk Bag Packaging Machine

Weighing range: Generally 1 - 2 tons per bag.

Accuracy: Dynamic weighing ±0.2%.

Working power supply: 380V, 50Hz, 11kw.

Air source pressure: 0.5 Mpa.

Air consumption: 0.6 m³/min.

Dust removal air volume: 800 - 2500 m³/min.

Relative humidity: ≤ 80%.

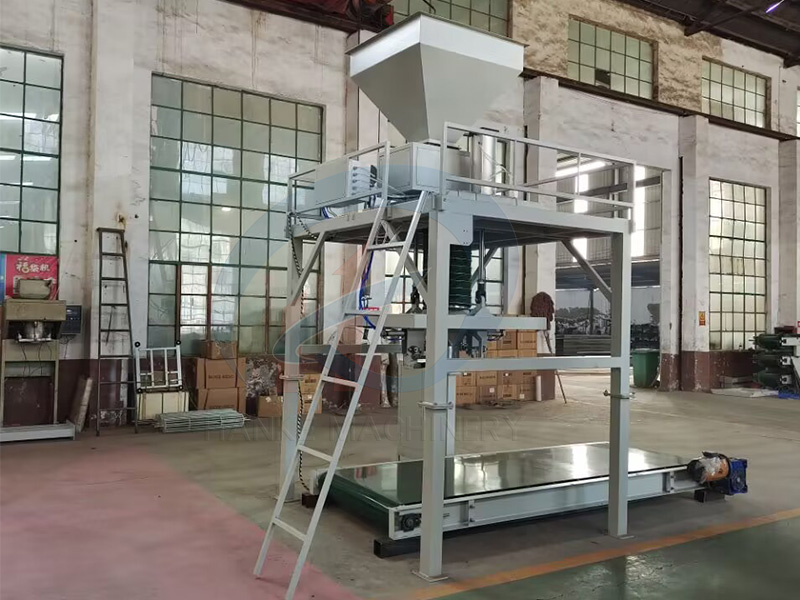

III. Basic Configuration of Corn Starch Bulk Bag Packaging Machine

Storage silo: used for storing materials to be packaged.

Weighing and measurement device: Achieves precise measurement of material weight.

Steel frame structure platform: provides support and installation foundation for equipment.

Ton bag hanging device: used for suspending ton bags to facilitate material filling.

Conveyor (optional): It can transport the packaged ton bags to the next process.

PLC control system: Achieve automated control of the entire packaging process.

Good after-sales service for granular packaging machines can ensure the normal operation of the equipment, extend its service life, and improve production efficiency. At the same time, it enables users to get timely solutions when encountering problems during use, reduces losses caused by equipment failures, and enhances users' trust in the equipment and the manufacturer. Zhengzhou Hanko Machinery is a self-manufacturing and self-selling company that directly faces users, eliminating unnecessary middlemen troubles, with transparent prices and no middleman profits. Users can purchase with confidence! If you have any needs, please feel free to consult or come to the factory for a free trial at any time!
