Dynamic automatic batching system

Product introduction:

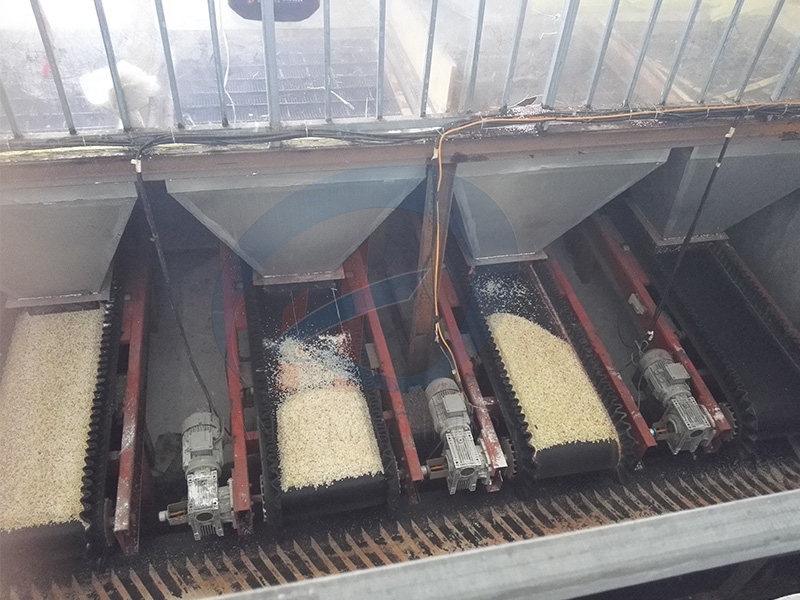

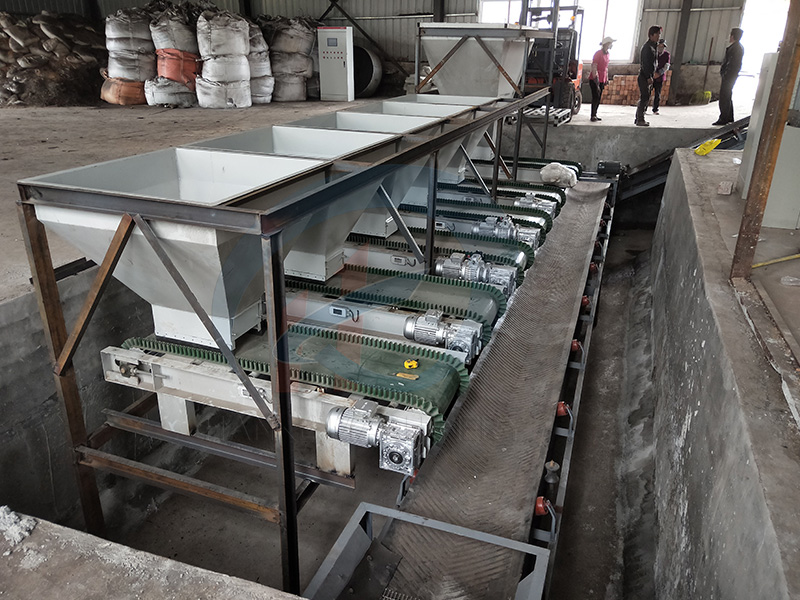

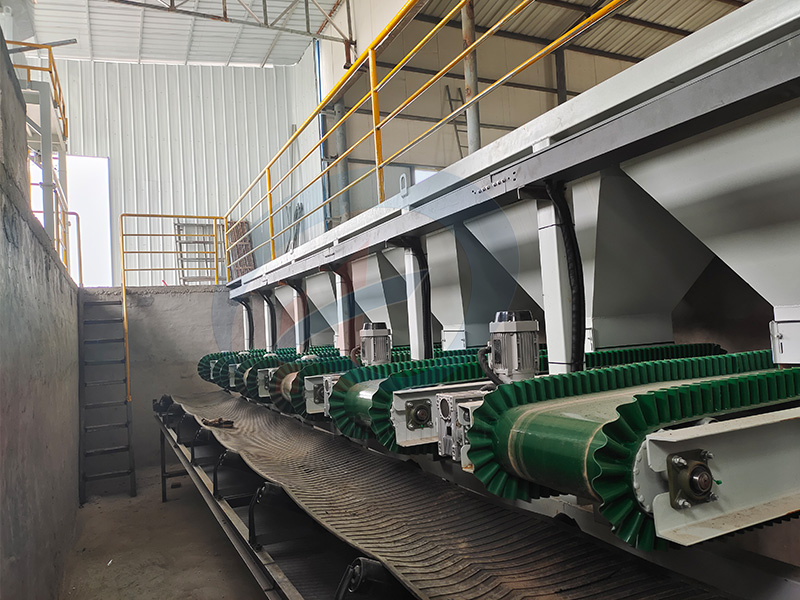

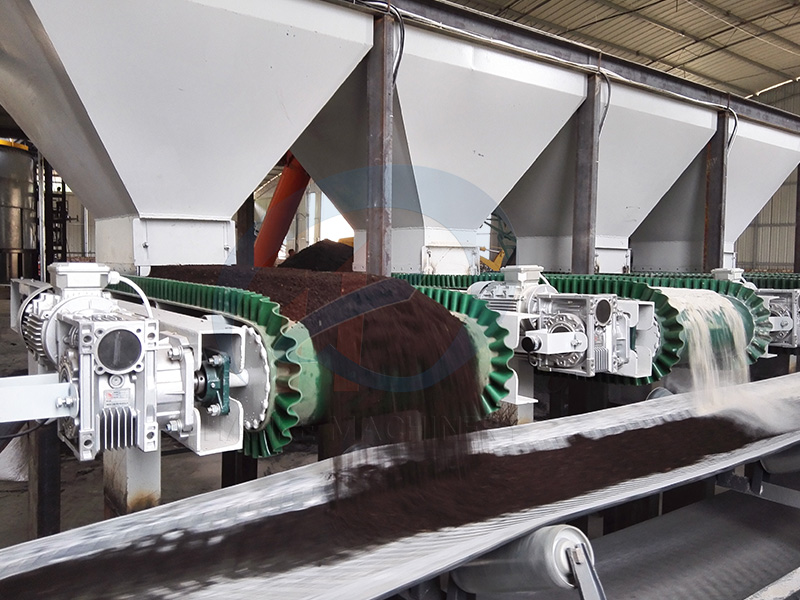

HK-DPL automatic batching system is an intelligent batching system carefully developed by Zhengzhou Hanke Machinery. The batching system is mainly composed of four parts: storage bin, roller belt, quantitative device, and microcomputer control system. It has the characteristics of reasonable structure, electrostatic spraying process, beautiful shape, stable operation, operation, accurate measurement, and accurate proportioning.

Performance advantages:

1. Suitable for single bag batching, single bag mixing, and single bag packaging, and can batch 5~10T per hour;

2. There are many types of ingredients, and 4~6 materials can be batched;

3. Batching accuracy is 0.5%, and packaging accuracy is 0.2%

4. The formula can be changed at any time according to the production needs of the user;

5. It has a printing function and can print reports at any time;

6. It has on-site or remote monitoring system functions, and is connected to a large screen to display the current formula.

7. It occupies a small area (above ground, underground, and semi-underground), low power consumption, simple operation, and easy maintenance, reducing investment costs.

Usage:

The dynamic batching system detects the quality of the passing materials through the metering rack to determine the quality of the materials on the tape;

The digital speed sensor installed at the tail continuously measures the running speed of the feeder, and the pulse output of the speed sensor is proportional to the speed of the feeder;

The speed signal and weight signal are sent to the feeder controller together, and the microprocessor in the controller processes it to generate and display the cumulative/instantaneous flow rate. The flow rate is compared with the set flow rate, and the control instrument outputs a signal to control the frequency converter, thereby achieving the requirement of quantitative feeding.

Scope of application:

batching of water-soluble fertilizers, compound fertilizers, blended fertilizers, organic fertilizers, feed, grain, chemicals, metallurgy, refractory materials, rubber and plastics, rubber and other materials, as well as the flow rate, cumulative amount, and monitoring of materials.
