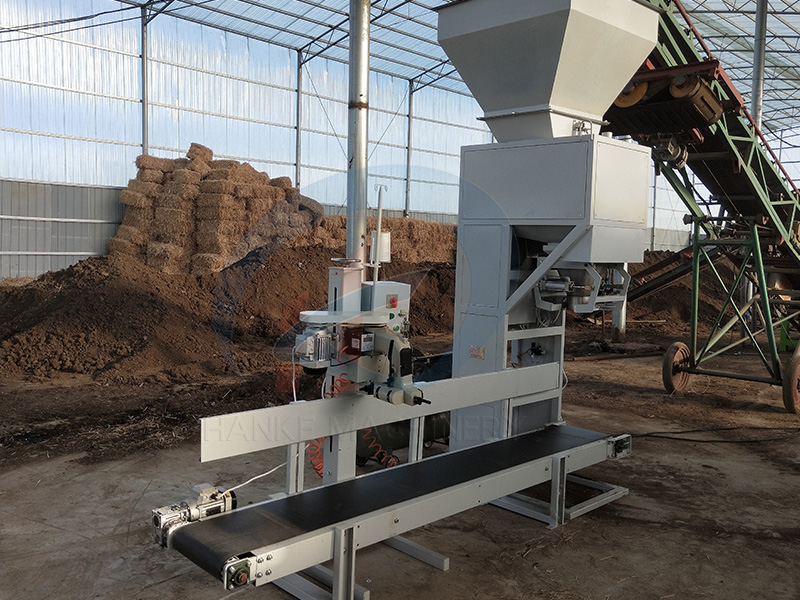

Powdered activated carbon packing machine working principle, operating procedures

The working principle and operating procedures of the powdered activated carbon packaging machine are crucial to ensure the normal operation of the equipment and the safety of the operator. Operators should be familiar with the working principles and operating regulations of the equipment, and operate and maintain the equipment in strict accordance with the regulations. The following is a detailed introduction of its working principle and operating procedures:

First, the working principle

The working principle of powdered activated carbon packaging machine is mainly based on weight measurement and automatic control technology. Its work flow is roughly material supply - weight measurement - automatic control - sealing operation, as follows:

Material supply: Powdered activated carbon enters the packing machine filling system through the hopper.

Weight measurement: During the filling process, a weight measurement system, such as a mechanical lever scale, an electronic scale, or a mechano-electronic combination scale, accurately measures the weight of the activated carbon.

Automatic control: The control box adjusts the amount of activated carbon filling through the drive system according to the preset weight range to ensure that the activated carbon weight in each bag meets the preset standard.

Sealing operation: When the weight reaches the preset value, the packaging machine will automatically stop filling, and seal the operation to ensure the sealing of the packaging bag.

Second, operating procedures

In order to ensure the normal operation of the powdered activated carbon packaging machine and the safety of the operator, the following are its operating procedures:

Wear labor protection supplies: Operators need to wear appropriate labor protection supplies, such as protective clothing, masks, gloves, etc., to prevent injury in the process of work.

Check the equipment: Before starting the operation, it is necessary to carefully check the various parts of the packaging machine to ensure that all parts are in good working condition. In particular, it is necessary to check whether the components such as the hopper, bag bracket, transmission system, control box, weight measurement system and dust removal device are in good condition.

Setting parameters: According to the specific production task, adjust the parameters of the packaging machine, such as bag length, sealing temperature, weighing accuracy, etc. The adjustment of these parameters should be determined according to the characteristics of powdered activated carbon and packaging requirements.

Start the device: Turn on the power switch, start the packaging machine, and perform the preheating and self-test procedure. The preheating time should be determined according to the equipment specification to ensure that the equipment can run stably.

Pour material: Evenly pour powdered activated carbon into the hopper, taking care not to exceed the capacity limit of the hopper, so as not to cause equipment failure or uneven packaging.

Start packing: Press the start button and the packing machine will automatically fill, weigh, seal and cut. During the packaging process, the operator should pay close attention to the operating status of the equipment and the quality of the packaging.

Regular cleaning: In the production process, the packaging machine should be cleaned regularly, especially the parts that are easy to accumulate powder such as the hopper, conveyor belt and sealing knife holder. When cleaning, use appropriate cleaners and tools to avoid damage to the equipment.

Lubrication maintenance: Regularly lubricate the moving parts of the equipment to reduce wear and extend the service life of the equipment. The type and amount of lubricant should be determined according to the equipment instructions.

Troubleshooting: Once the equipment is found to be abnormal or faulty, it should be stopped immediately for inspection and troubleshooting in time. When troubleshooting, the power supply should be turned off and the troubleshooting methods in the equipment manual should be followed.

Operation safety: During operation, operators should avoid contact with hot parts and improper tools. At the same time, the operating procedures should be observed, and the equipment Settings should not be changed without authorization to ensure production safety.

Henan is a gathering place of machinery and equipment, and many users choose to buy equipment here, Zhengzhou Hanke Machinery is one of them. Powdered activated carbon packaging machine is loved by users, and it is made of high-quality steel, with strong wear resistance of key components, stable performance of equipment, and continuous and rapid operation, which can create high profits for users. The manufacturer's service is complete, after-sales service is guaranteed, timely solve the user's production problems, smooth production, so that you can buy more assured.
