No Bucket Granule Packaging Machine

Product introduction:

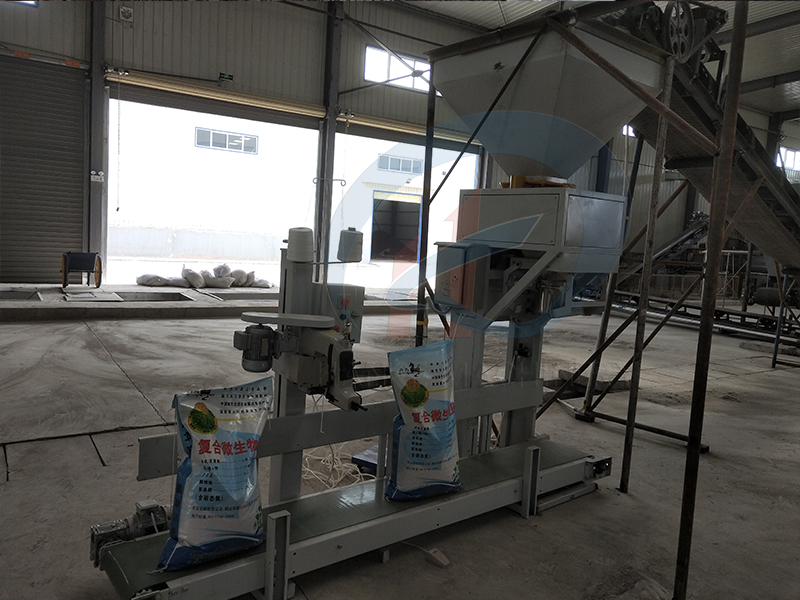

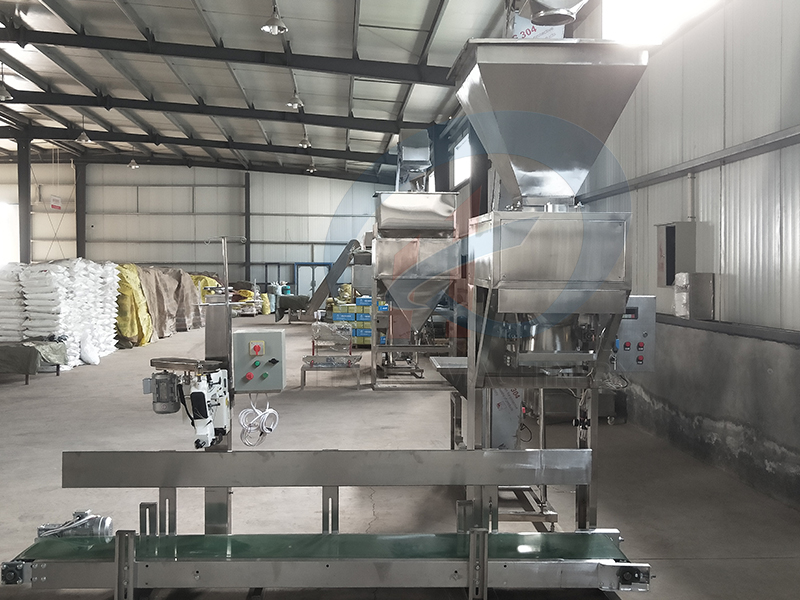

HK-K50A granule bucketless packaging machine is a packaging machine carefully designed and developed by our company for packaging materials with good fluidity. The machine is mainly composed of four parts: automatic weighing device, conveying device, bag sewing device, and computer control system. It has the characteristics of reasonable structure, beautiful electrostatic spraying process, stable operation, easy operation, fast weighing speed, and accurate measurement.

The main machine adopts a multi-speed pneumatic gate feeding mechanism with fast response speed and high accuracy. The weighing control instrument has functions such as automatic peeling, automatic zero position tracking, and anti-interference, which can realize automatic error compensation and correction.

Structural composition:

The bucketless granule packaging machine is mainly composed of the following parts:

Scale body: used to carry and measure granular materials.

Feeder: responsible for feeding granular materials into the scale body for measurement.

Weighing hopper: temporarily store granular materials during the measurement process and ensure accurate measurement.

Drop hopper: after the measurement is completed, the granules are dropped from the weighing hopper into the packaging bag.

Pneumatic bag clamp: used to clamp the packaging bag to prevent the packaging bag from slipping during the filling process.

Sensor: monitors the weight of granular materials in real time to ensure accurate measurement.

Weighing control instrument: displays and controls weight data throughout the packaging process.

Electronic control system: realizes automatic control and fault self-diagnosis of equipment.

Working principle:

Put the empty packaging bag on the pneumatic bag clamp manually and clamp it.

The feeder starts working and feeds the granular material into the weighing hopper for measurement.

The sensor monitors the weight of the granular material in the weighing hopper in real time. When the preset value is reached, the feeder stops working.

The drop hopper opens and the material particles in the weighing hopper fall into the packaging bag.

The sealing system seals the packaging bag to ensure that the material will not leak.

The sealed packaging bag is sent to the next process or palletized through the conveyor belt.

Scope of application:

The bucketless granule packaging machine is widely used in fertilizer, chemical, feed, grain and other industries, especially for the packaging of granular and loose materials. The equipment is suitable for packaging bags of different specifications and materials, such as paper bags, woven bags, plastic bags, etc., with strong versatility and flexibility.

When selecting a bucketless granule packaging machine, the following factors need to be considered:

Packing specifications: Select appropriate packaging specifications according to actual needs, such as 20-50kg, etc.

Packing speed: Select the appropriate packaging speed according to production needs to ensure production efficiency.

Measuring accuracy: Ensure that the metering system has sufficient accuracy to meet production requirements.

Automation degree: Select the appropriate equipment model according to the automation degree of the production line to achieve efficient and accurate packaging operations.
