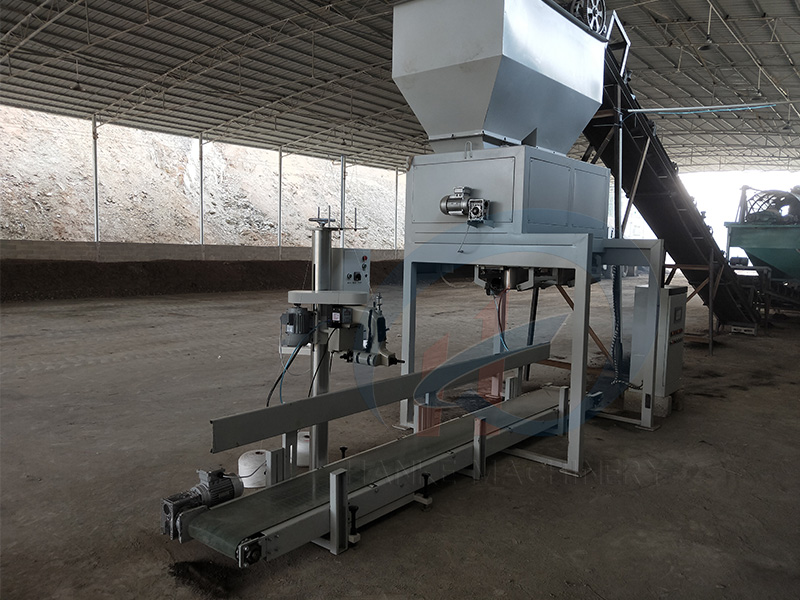

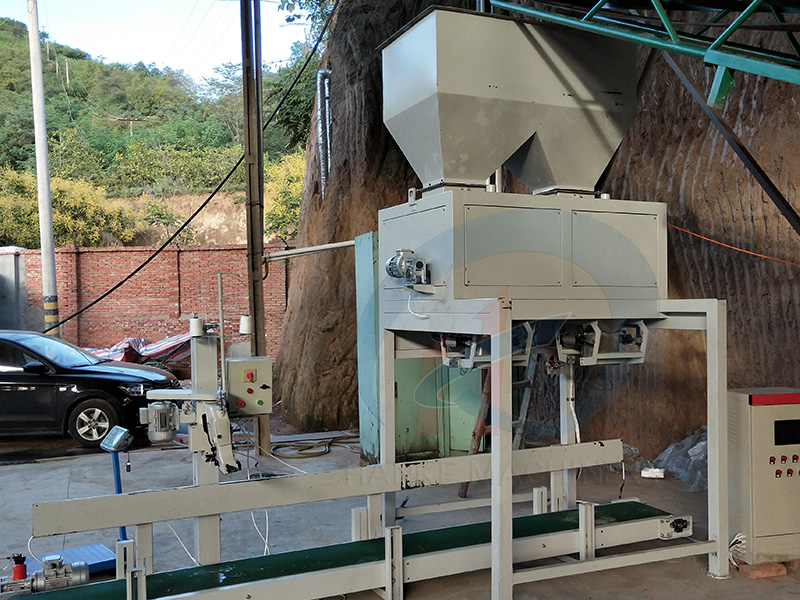

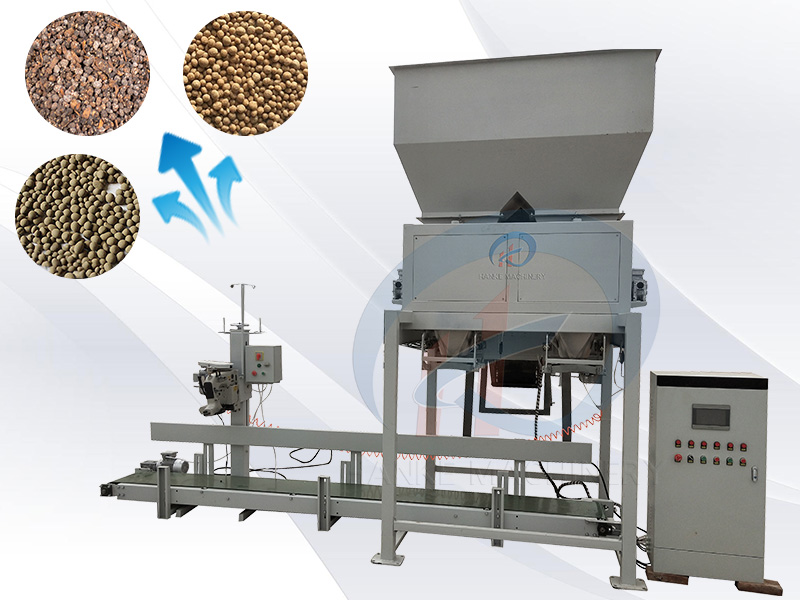

Double Station Powder Packing Machine

Production Capacity: 12~15T/H

Matching Power: 2.62KW

Applicable Materials: Seedling substrate, nutrient soil, organic fertilizer, feed, river sand, grain

Product Introduction:The packaging speed of the organic fertilizer double-station automatic packaging machine is twice that of the ordinary powder packaging machine, which not only saves labor costs, but also reduces the footprint, and can increase the output.

Product Description

Product introduction:

Organic fertilizer double-station automatic packaging machine is a new generation of intelligent packaging machine in our company, which is an upgraded version of the ordinary powder packaging machine, mainly composed of automatic weighing device, conveying device, sewing device and computer control system.

The packaging speed of the organic fertilizer double-station automatic packaging machine is twice that of the ordinary powder packaging machine, which not only saves labor costs, but also reduces the footprint, and can increase the output.


Performance characteristics:

1. Organic fertilizer double-station automatic packaging machine only needs two people to operate, one person to receive materials, one person to seal. Ordinary packaging machine requires four people to operate.

2. Two filling and measuring units, one is equal to two ordinary models, and can complete different specifications of packaging at the same time.

3. Specially designed feeding and bucket metering, bagging and unloading at the same time, does not affect the material measurement. Save one third of the operation time, fast packaging speed, high packaging precision.

4. The double-station powder packaging machine has about 3 bags more per minute than the single-station packaging machine, and the packaging speed is twice that of the ordinary powder packaging machine, which not only saves labor costs, but also reduces the floor space and improves the output.

5. Adaptive software with automatic setting of control parameters and automatic correction of drop.

6. Wide quantitative range, high precision, with the table can lift the conveyor sewing machine, a multi-purpose machine, high efficiency.

7. Imported sensor, imported pneumatic actuator, reliable work, simple maintenance.

8. Can be customized according to customer requirements.

Product Parameter

 Main technical parameters:

Model HK-FS50A
Weighing range 20~50KG
Packing speed 360~480 bags/hour
Packaging accuracy ± 0.2%
Power supply: AC-380V 220V 50HZ
Machine power 2.62KW
Air source: ≥0.36m³/ min
Conveyor 4M
