Ton Bag Powder Packing Machine

Product Introduction：

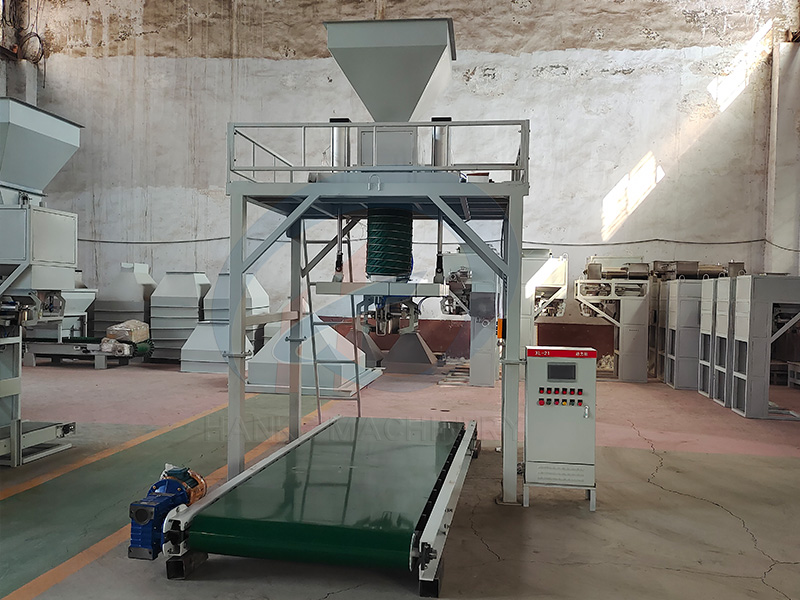

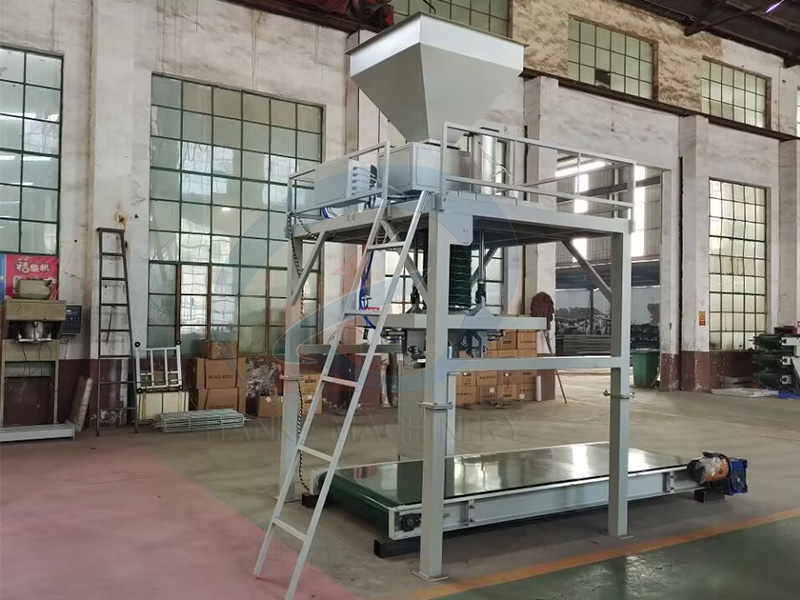

The HK-DCS1000 powder ton bag packaging machine, also known as a large bag packaging machine or ton bag baler, is a special bulk material packaging equipment with a unique structure and large packaging capacity. It integrates weight display, packaging timing, process interlocking, and fault alarm. It has the characteristics of high measurement accuracy, large packaging capacity, environmentally friendly sealant, high degree of automation, large production capacity, wide range of applications, simple operation, and easy loading and unloading.

It has automatic peeling, automatic zeroing, high sensitivity, and can be connected to the Internet to realize network management. When filling, you only need to manually hang the bag, put on the bag, and after the given signal, the equipment can automatically complete the entire working cycle of bag clamping, filling, and metering, and automatically seal and loosen the bag after reaching the weight.

Composition structure and use process:

Structural composition: HK-DCS1000 powder ton bag packaging machine is divided into: ① feeding unit; ② weighing unit; ③ control unit;

Use process: First set the controller parameters (target value), the following takes 1000KG as an example:

After the equipment is started, the quantitative mechanism automatically opens to start unloading. This machine is a double-screw unloading, and weighing and quantitative are completed automatically.

This equipment requires manual assistance in bagging. Manually put the packaging bag into the bag clamping mechanism, turn the bag clamping switch, and automatically tighten the packaging bag. When the weighing bucket is quantitatively completed, the weighing bucket opens, and the material is lowered into the packaging bag. After unloading is completed, the entrainment mechanism is released, and the bag falls on the bag conveyor. At the same time, the weighing bucket closes and restarts the next quantitative process. (This article is a simple operation process. When the equipment needs to be installed, our engineers will come to your company to guide the installation and debugging, and train your company's personnel.)

Features:

1. Intelligent control instrument, high measurement accuracy, stable performance, digital display, easier and faster operation. It has the functions of automatic setting of control parameters, automatic correction of drop, over-tolerance alarm, self-diagnosis of faults, etc.

2. It adopts a non-metering barrel structure, the whole machine is low in height and occupies little space.

3. It adopts belt feeding to adapt to the flow speed of various materials, fast packaging speed and high precision, and prevents material blocking during feeding. With high-precision sensors and imported pneumatic actuators, it has high reliability and simple maintenance.

4. The casing adopts advanced spraying technology, and the parts in contact with the material are smooth and wear-resistant, with good fluidity, high hygiene standards, corrosion resistance, and long equipment service life.

5. Optional and reserved dust removal system can be used to systematically recycle dust materials.
